928G

Backhoe Loader


Properties

  • Up to 200° working range
  • Easy to use and great operator comfort
  • Powerful Cummins B-4.5 Stage 5 engine
  • Articulated steering for superior off-road capability
  • Outstanding visibility from the cab
  • Great lifting and loading power
  • Quiet and compact for city use

900G SERIES

The 900G Series from Hydrema is a collection of state-of-the-art articulated backhoe loaders designed to offer unrivalled versatility and efficiency. Designed with more than four decades of experience, these machines stand as a testament to Hydrema's dedication to quality and functionality. The range includes the 906G, 908G, 926G and 928G models, equipped with advanced technologies and designed to meet the changing needs of modern construction sites.


Hydrema 928G

The Hydrema 928G is part of the advanced 900G series and stands as a pinnacle of articulated backhoe loaders. This machine is designed to deliver exceptional performance and flexibility on construction sites. Powered by a powerful Cummins B-4.5 Stage 5 engine, offering 147 hp and impressive torque, the 928G ensures efficiency in both loading and digging applications.


POWER AND PRECISION IN HARMONY

The 928G stands out with its unique combination of power and precision. It is equipped with an advanced hydraulic system that includes Flow Sharing for a smooth digging cycle and reduced fuel consumption. With a 200-degree working range and a machine that is physically larger than the 908G, the 928G is ideal for both spacious and confined work areas. Its impressive lifting power makes it particularly suitable for lifting tasks that require extra strength. The loader is in a class of its own, with performance that rivals that of a 10-tonne loader.

Operator comfort is also a key feature. The cab is spacious, quiet and well-equipped, ensuring a comfortable working day. With Hydrema's unique articulated steering system and advanced telematics, the 928G offers a superior driving experience as well as important machine performance data. The robust construction and innovative design make the 928G a versatile and reliable partner on any construction site.

Chassis

The Hydrema 928G's chassis is a technological marvel that combines power and precision. The articulated design with robust robotic welding and an innovative centre pivot system ensures optimal manoeuvrability and minimal ground pressure. This advanced chassis gives the 928G exceptional off-road capability, making it ideal for working in diverse and challenging conditions. This strong construction ensures the 928G can handle even the toughest jobsite tasks with ease and efficiency.


AXLES

On the Hydrema 928G, the axles play a vital role in ensuring the machine's superior performance and manoeuvrability. This model is equipped with robust, fixed axles, which are essential for its stability and traction. The axles are designed with advanced hub reduction and are equipped with smart locking systems - an automatic limited slip differential lock on the front axle and a 100% electro-hydraulic differential lock on the rear axle.


ENGINE

The 928G is equipped with a powerful and efficient Cummins B-4.5 Stage 5 engine. This 4.5 litre, 16-valve Common-Rail Turbodiesel engine with intercooler and electronically variable turbocharger delivers an impressive 147 hp and 600 Nm of torque at 1500 rpm. This engine is designed to deliver maximum power and performance while maintaining remarkable fuel efficiency. Furthermore, the engine is compatible with biodiesel (HVO), offering a more environmentally friendly operation. The large hydraulic capacity ensures that most tasks can be performed at low revs, where the engine has the lowest specific fuel consumption, further optimising efficiency.


FUEL

To support its powerful performance, the Hydrema 928G is equipped with an advanced fuel system. The machine has a spacious 155 litre diesel fuel tank integrated into the rear chassis, ensuring long working intervals without the need for frequent refills. In addition, there is a 14 litre AdBlue tank located in the front chassis, which is essential for reducing emissions and meeting the strict Stage 5 environmental requirements.


BRAKES

The Hydrema 928G is equipped with an advanced braking system that ensures maximum safety and control during operation. The machine has a dual-circuit hydraulic servo system and efficient oil-immersed disc brakes on all wheels. This ensures reliable and smooth braking, even under heavy loads or on uneven surfaces. In addition, the 928G is equipped with an electro-hydraulic "Failsafe" parking brake, which automatically activates the wet disc brakes on the front axles.


HYDRAULIC SYSTEM

The hydraulic system on the Hydrema 928G plays a key role in its versatility and efficiency. With an electronically controlled Double Command system and Flow Sharing technology, the system provides smooth and precise control over the machine's many functions. The 928G uses a Load Sensing system with a variable pump that delivers up to 220 l/min at 2200 rpm. and a pressure of 240 bar. This ensures the machine can perform even the most demanding tasks with impressive efficiency and precision, making it an indispensable resource on any construction site.


TRANSMISSION

This backhoe loader features an advanced and efficient transmission that is essential for its smooth and powerful performance. It is equipped with a ZF WG115, 6-speed fully automatic "ERGO-POWER Soft-Shift" transmission, which ensures 100% electronic control. This advanced transmission enables extremely smooth gear changes without interrupting traction, which is essential for constant and efficient operation. With six forward and three reverse gears, as well as constant 4-wheel drive, the 928G delivers a superior combination of control, traction and comfort.


STEERING

Like the 926G, the 928G features the unique and advanced articulated steering system with hydraulic stabilisers, designed to optimise manoeuvrability and safety. The articulated steering also incorporates the oscillation, which allows 12 degrees of oscillation to each side and contributes to manoeuvrability. The hydraulic stabilisers automatically transfer weight from one wheel to another, ensuring constant weight distribution to the wheels in contact with the ground. With an articulated steering angle of +/- 35°, this hydrostatic steering system with Load Sensing provides exceptional control and precision in all work situations, which is essential for navigating complex and challenging construction sites.


ELECTRICAL SYSTEM

The electrical system of the Hydrema 928G plays a key role in its overall function and reliability. Equipped with a robust 24V system and a powerful 70 Amp. generator, this system ensures constant and stable power supply to the machine's vital components. To support this operation, the 928G is equipped with two durable 12V, 95Ah batteries, which are essential for reliable engine starting and maintenance of electrical systems.

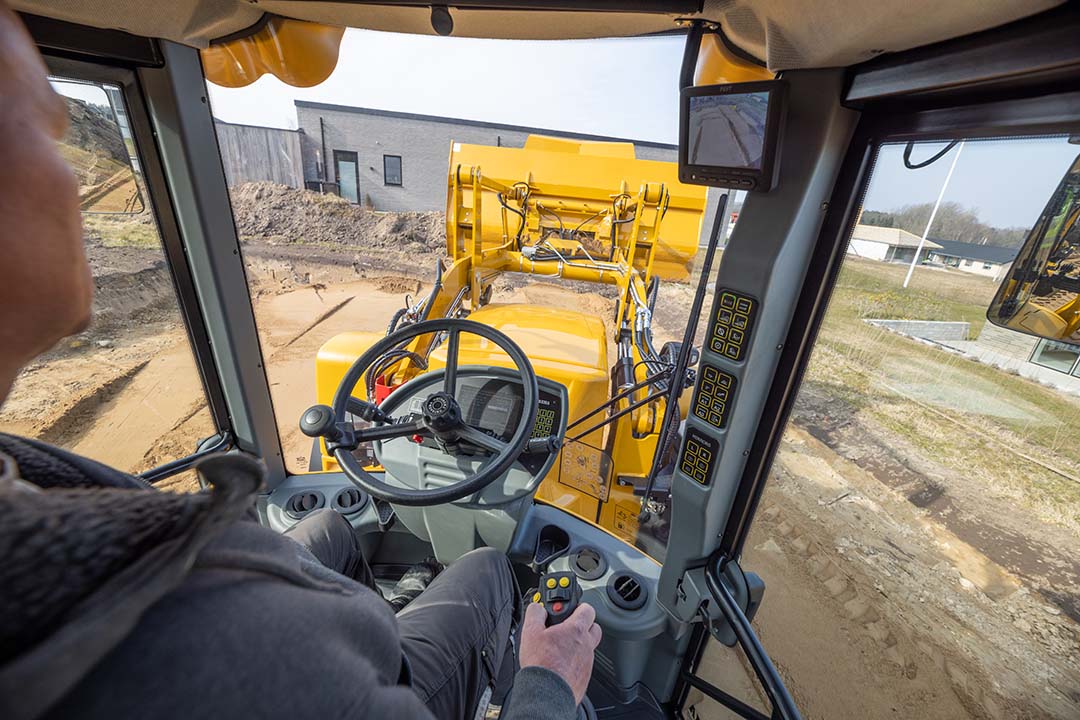

OPERATORS CAB

The Hydrema 928G's cab combines advanced technology and comfort. It features a spring-suspended cab with a 4-point system that reduces movement and noise from the axles and chassis, especially noticeable at high speeds. This ROPS/FOPS approved cab is designed with an adjustable seat, multi-adjustable armrests, and an adjustable steering wheel, improving ergonomics and comfort for the operator. This well-equipped cab contributes to reduced fatigue and increased productivity, making the 928G ideal for long and demanding workdays.


DOUBLE COMMAND

The Hydrema 928G stands out with its innovative " Double Command" feature, giving operators unrivalled flexibility and control. This unique feature allows operation of the machine in both directions of travel, even with your back to the steering wheel. With the advanced Double Command System (ESD), the operator can manoeuvre both wheel steering and all hydraulic functions from the two joysticks in the armrests. This provides improved manoeuvrability and precision, which is particularly useful in tight or complex work areas.


EXCAVATOR

The excavator on the Hydrema 928G is designed to deliver power and precision in any digging task. Equipped with a 200° working range, this excavator is ideal for efficiently handling diverse tasks. The machine's excavator combines strong breakout force with high capacity at both low and high speed, making it suitable for a wide range of applications. The Flow Sharing technology in the system ensures a smooth digging cycle and optimises fuel efficiency. The robust construction of the boom and excavator arm, made of high-strength steel, ensures long life and reliability, making the 928G an essential and powerful excavator on any construction project.


LOADER

The 928G is equipped with a highly efficient loader, designed to handle a wide range of loading tasks with great efficiency and precision. The loader always follows the direction of travel for optimal front shovel filling. The machine's loading capacity is on par with a true 10-tonne loader, demonstrating its power and stability. With automatic parallel guidance and Z-kinematics, it makes it easy to fill the bucket in all conditions, and its load stabiliser is a standard feature that ensures great comfort, especially when driving on roads.


SOUND LEVEL

In the design of the Hydrema 928G, emphasis has been placed on achieving a low sound level, which significantly improves the working environment. Inside the cab, an impressively low noise level of only 67 dB(A) is maintained, ensuring a quiet and comfortable workplace for the operator. This low interior noise level is due to effective insulation and advanced cab design. Outside, the sound level is limited to 99 dB(A), which is remarkable for a machine of this calibre.


EQUIPMENT

The Hydrema 928G is excellently equipped and offers a wide range of features and customisation options, making it a versatile and powerful work machine. Standard equipment on the 928G includes advanced safety features, high-tech control systems, and a comfortably designed cabin that improves operator efficiency and comfort. In addition, a wide range of customisation options are offered, allowing users to adapt the machine to specific needs and tasks. From different dipper sizes and dipper arm configurations to advanced telematics solutions, the 928G is designed to meet the demanding challenges of modern construction sites, making it an indispensable resource for any contractor.

Dimensions

    STANDARD TELESCOPE SIDE ANGLE TELESCOPE/SIDE ANGLE
Total weight w/ standard shovel kg 9400 9600 9500 9700
Width over std. tyres  mm 2310 2310 2310 2310
Track  mm 1810 1810 1810 1810
Wheel base  mm 2555 2555 2555 2555
Turning radius – outer shovel corner   mm 5.700 5.700 5.700 5.700
Max. width mm 2.555 2.555 2.555 2.555
Excavator
Slew angle o 200 200 200+2x25 200+2x25
Approach height, max.   mm 6110 6.180/6.980 6110 6.180/6.980
Lifting height – level base of bucket   mm 4260 4.330/5.140 4260 4.330/5.140
Bucket clearance  mm 1350 1350 1350 1350
Excavating depth  mm 5330 5.340/6.540 5330 5.340/6.540
Reach mm 6500 6.530/7.670 6500 6.530/7.670
Distance – centre pivot to rear axle   mm 1155 1155 1155 1155
Bucket rotation  o 190 190 190 190
Ground clearance – under machine  mm 410 410 410 410
Transport height, min. mm 3090 3090 3090 3090
Transport height, normal  mm 4100 4100 4100 4100
Angle of departure  ° 26 26 26 26
Sideshift mm - - - -
Beakout force, excav. cyl. - max. bucket (ISO 6015)  kN 38,4 38,4 38,4 38,4
Breakout force, shove. cyl. - max. shovel (ISO 6015)  kN 58,7 58,7 58,7 58,7
Lifting capacity – max. reach excl. appliances  kg 1750 1750 1750 1750
Stabilisers – supporting width  mm 3880 3880 3880 3880
Stabilisers – max. alignment angle  o 11,5 11,5 11,5 11,5
Loader
Std. shovel volume, max. / with m3/mm 1,7/2.550 1,7/2.550 1,7/2.550 1,7/2.550
Lifting height – horizontal shovel  mm 3,525 3,525 3,525 3,525
Clearance height – tipped shovel  mm 2.845 2.845 2.845 2.845
Excavating depth – horizontal shovel  mm 150 150 150 150
Reach from machine to tipped shovel  mm 740 740 740 740
Reach at ground level  mm 1.510 1.510 1.510 1.510
Emptying angle – max height  o 45 45 45 45
Back-tip angle – ground level  o 45 45 45 45
Dumping angle – ground level  o 100 100 100 100
Height, shovel pivot  mm 3.750 3.750 3.750 3.750
Lifting capacity – max. height excl. appliances  kg 5.000 5.000 5.000 5.000
Breakout force – 1.4 m3 shovel (ISO 8313)  kN 85 85 85 85

Data specified with std. tyres.

THE DIFFERENCES BETWEEN THE 900G SERIES MODELS

The 906G and 908G are versatile backhoe loaders, suitable for a variety of tasks, especially excavation work, due to their flexibility. For more challenging tasks, such as loading work, the larger and stronger models 926G and 928G are an ideal choice. Choose the model that best suits your unique needs and tasks.

906G

  • Equipped with a 280-degree working range due to sideshift.
  • Smaller in size compared to the 926G and 928G.
  • Equipped with a 122 hp engine.
906

908G

  • Has a working range of 200 degrees.
  • Smaller in size than the 926G and 928G.
  • Equipped with a 122 hp engine.
  • Offers greater lifting power than the 906G and 926G.
908

926G

  • Has a 280 degree working range with sideshift.
  • Larger than the 906G and 908G.
  • Comes with a more powerful 147 hp engine.
926

928G

  • Working range of 200 degrees.
  • Larger than the 906G and 908G.
  • Equipped with a powerful 147 hp engine.
  • Has greater lifting power than the 906G and 926G.

HYDREMA 928G: POWERFUL PRECISION AND VERSATILITY

The Hydrema 928G is a powerful and versatile articulated backhoe loader that stands out with its powerful performance and high functionality. Equipped with a robust 147 hp Cummins B-4.5 Stage 5 engine, this machine delivers excellent power and efficiency, making it ideal for both loading and digging applications.

With a 200-degree working range and advanced features such as electronically controlled Double Command and Flow Sharing, the 928G offers outstanding precision and manoeuvrability. The cab is designed for optimal comfort and noise reduction, and its robust construction ensures long life and reliability. The 928G is an excellent solution for demanding construction projects.

It solves every task we have, big or small, under unreasonably tight conditions

Hydrema 908G Hydraulics
Png Mark Hydrema Yellow

COMBINING GREAT FLEXIBILITY AND COMPACTNESS WITH THE 928G

The Hydrema 928G stands out as a highly versatile and powerful player in modern earthmoving equipment. This backhoe loader is tailored to handle a multitude of tasks and environments, making it an essential part of any construction site.

With a working range of 200 degrees, the 928G offers the operator exceptional manoeuvrability, which is essential for working efficiently in confined areas. This feature allows the 928G to perform various tasks from a fixed position, minimising the need to move the machine and thereby increasing productivity.

In addition to its impressive power and manoeuvrability, the 928G also excels with its superior lifting power, making it ideal for diverse lifting tasks. Combined with an advanced hydraulic system and intuitive controls, the 928G is a versatile machine that can quickly adapt and efficiently handle a wide range of tasks.



In its entirety, the Hydrema 928G is a testament to the flexibility and power of earthmoving equipment. It's not just a tool, but a multifunctional solution that can adapt and master many different tasks on various jobsites, making it an invaluable resource for contractors and construction sites.

Hydrema Telematics

OPTIMISING MACHINE OPERATION AND MAINTENANCE

The Hydrema 928G is equipped with the groundbreaking Hydrema Telematics system, an advanced technology that revolutionises the way machine performance and operation is monitored. This system is designed to collect and transmit vital data about the machine, giving owners and operators in-depth insight into machine usage and condition.

The system includes a GSM/GPS device installed directly in the machine, ensuring accurate and continuous monitoring of machine location and performance. Through the Hydrema Telematics portal or app, users can access a range of valuable information such as machine type, serial number, model, geo-position, machine hours, battery status, distance travelled, alarms and fault codes. This allows for proactive maintenance and troubleshooting, increasing machine reliability and efficiency.

One of the most valuable aspects of Hydrema Telematics is its ability to schedule maintenance and service more efficiently. With access to detailed data on machine usage and condition, maintenance schedules can be customised exactly to the actual needs of the machine, reducing downtime and costs.

Hydrema Telematics in the 928G is not only a tool for data collection, analysis and maintenance, but also a resource that maximises productivity and ensures more sustainable and economical operations. This technology is a crucial element of modern construction, making the 928G an even more valuable player on construction sites.

HYDREMA 928G: POWER AND INNOVATION IN ONE BACKHOE LOADER

Double Command

DOUBLE COMMAND SYSTEM

REVOLUTIONARY CONTROL AND FLEXIBILITY

The Hydrema 928G's innovative Double Command System gives the operator full control of the machine using two joysticks in the armrests. This system enables bi-directional travel and provides exceptional manoeuvrability, making the 928G the ideal choice for complex work areas.

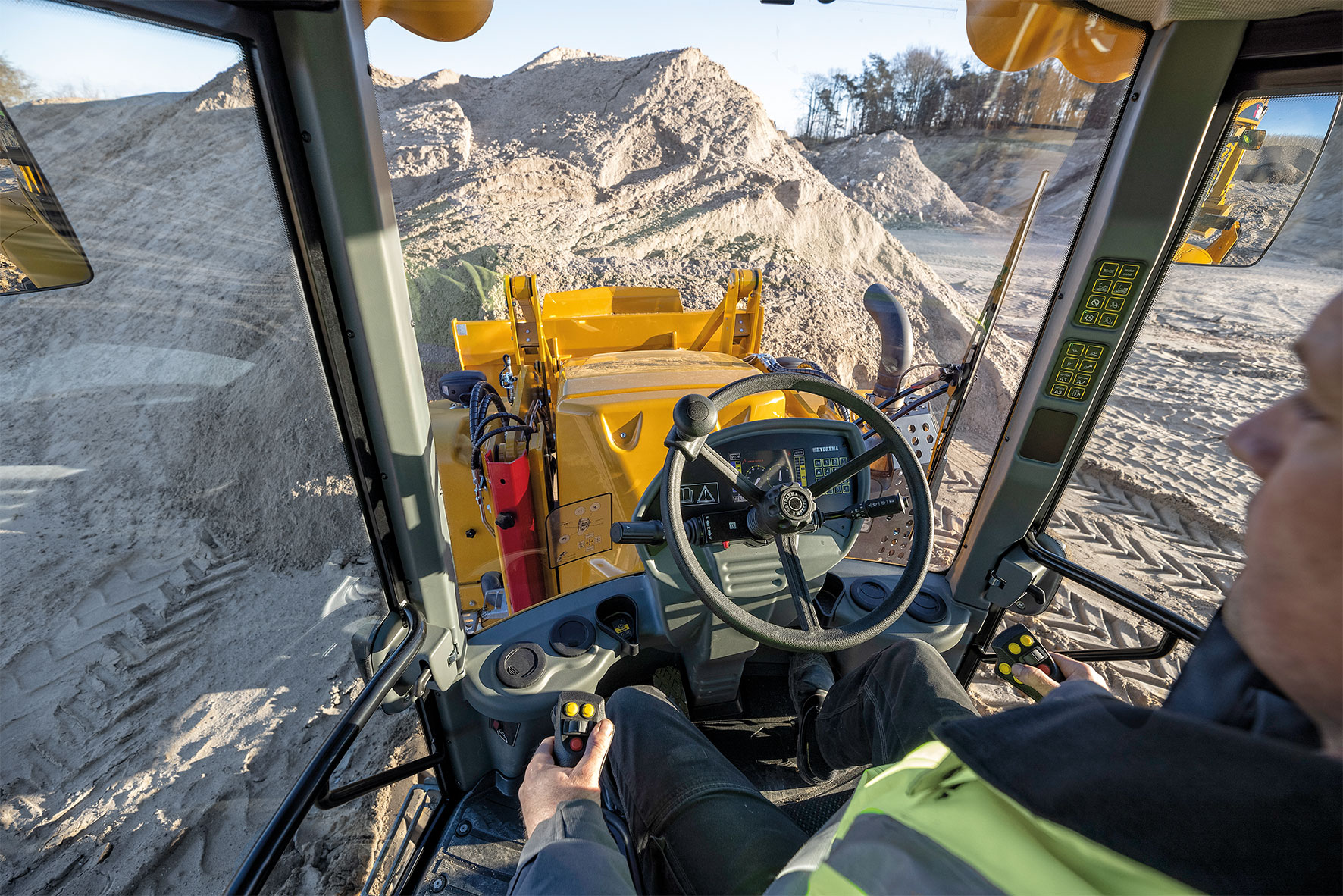

Cab

THE CAB

THE ULTIMATE WORKSTATION

The 928G cab is designed with operator comfort and work efficiency in mind. The spring-suspended cab with 4-point suspension and roll stabilisers reduces axle and chassis movements and noise levels, providing a comfortable working experience, even when driving fast off-road and on-road.

Tiltrotator

TILTROTATOR

OPTIMISED FLEXIBILITY

The tiltrotator is an optional feature for the Hydrema 928G that adds an extra dimension of versatility to the machine. With this optional addition of an Engcon rotor tilt, the operator can rotate and tilt the equipment, enabling precise digging and loading operations at any angle. It's the ultimate solution for handling complex tasks on the jobsite.

POWERFUL PERFORMANCE MEETS ADVANCED TECHNOLOGY IN THE 928G

SAFETY IN FOCUS

Safety is a priority in the design of the Hydrema 928G. This powerful machine is equipped with advanced safety features to protect the operator and surrounding workers. With features such as emergency stop, monitoring systems and ergonomic design, the 928G ensures a safe working experience on any construction site.

ENVIRONMENTALLY FRIENDLY OPERATION

The 928G backhoe loader is not only a powerful workhorse, but also a dedicated environmentalist. Driven by sustainability and green technology, the 928G is designed to minimise its impact on the environment. From efficient fuel consumption to low emissions and innovative environmental initiatives, the 928G helps preserve nature while working hard on the jobsite.

STRENGTH AND PERFORMANCE

The Hydrema 928G epitomises raw power and exceptional performance. With its powerful 147 hp engine and advanced hydraulic system, it overcomes any challenge in its path. Whether digging, loading or lifting, the 928G delivers unwavering strength and precision that sets the standard for modern earthmoving equipment.
