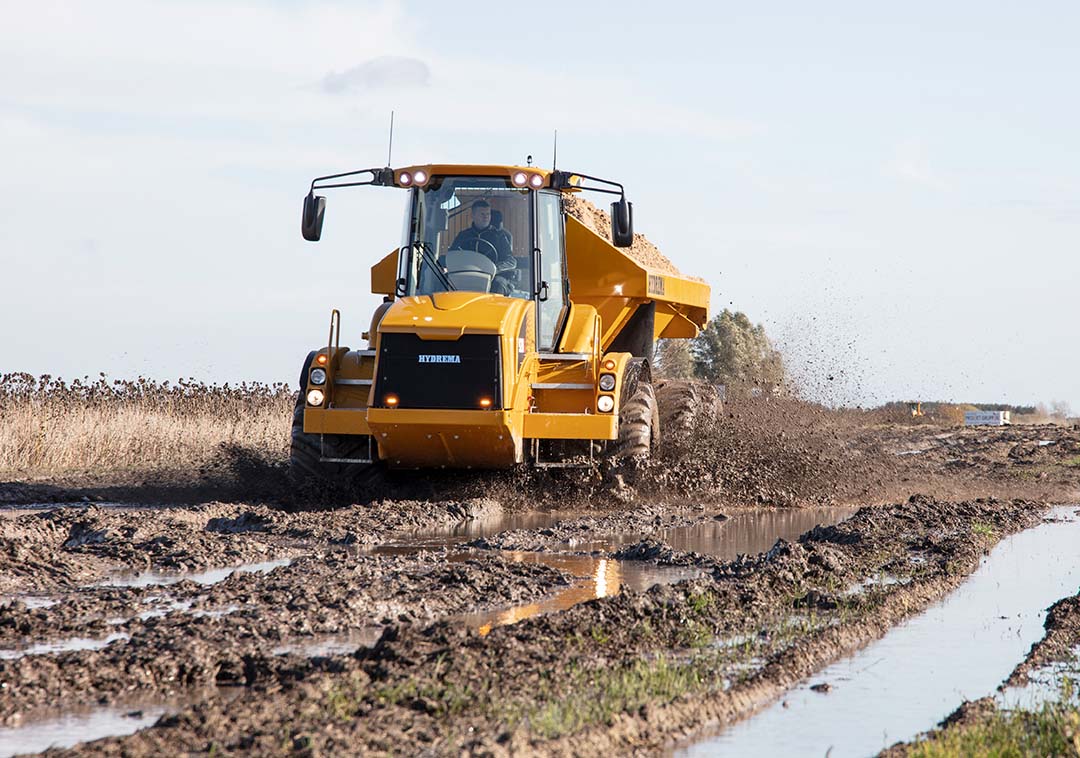

920G Side Frog View Soft Terrain 920G Rear View Soft Terrain 1 920G Front View Splash Soft Terrain 1 920G Side View Unloading Soft Terrain

920G

Dump Truck


Properties

  • 18 tonnes load capacity
  • Three-axle & articulated
  • Cummins B6.7 Stage V with 314 hp
  • Hydraulic stabilisers, bogie axles & high ground clearance
  • Excellent visibility from the cab
  • Low ground pressure

922G SERIES

The Hydrema 922G series epitomises versatility, performance and reliability. With a range of dumper trucks including the standard 922G, the narrow 922G 2.55, the low ground pressure model 922HM and the specialised 920G, this series covers every earthmoving and construction need. Whether in soft terrain or on public roads, the 922G series delivers exceptional traction, a comfortable cab and advanced technology.


HYDREMA 920G: SUPERIORITY IN SOFT TERRAIN

When working conditions become extremely challenging and require maximum traction and minimum ground pressure, the Hydrema 920G is the ultimate dumper to step in. Designed specifically for earthmoving in highly sensitive and muddy terrain, this powerful machine is built to handle even the most demanding jobs. The wider steel-reinforced tyres are designed to meet the most challenging terrain conditions. Their strong traction pattern and puncture resistance make them the ideal partners for working in soft terrain.


POWER AND PRECISION: THE ENGINE AND TRANSMISSION OF THE HYDREMA 920G

The Hydrema 920G, like the rest of the 922G series, is equipped with a powerful Cummins engine that delivers reliable power to handle the most challenging terrains. The engine is a 6-cylinder Stage 5 diesel engine with an impressive power output of 231 kW (314 Hp) at 2200 rpm and a maximum torque of 1288 Nm at 1500 rpm. This gives the 920G the power needed to tackle heavy earthmoving tasks.

The transmission in the Hydrema 920G is a ZF ERGOPOWER 6 WG-210 automatic transmission with 6 forward and 3 reverse gears. It is equipped with 100% lock-up in all gears and also features a manually operated differential lock between the front and rear axles. This allows the operator to choose between automatic or manual gear shifting, providing flexibility in different work situations.

Together with the 920 mm wide tyres and the record low ground pressure of only 85 kPa fully loaded, the Hydrema 920G is optimally designed for working in soft terrain and earthmoving applications where traction and performance are crucial for success.

CHASSIS

The Hydrema 920G is equipped with an articulated chassis that delivers impressive stability and strength. The high-strength steel chassis construction combines lightweight with robustness, ensuring the machine remains stable during both travelling and tipping. With a swing angle of up to +/- 12 degrees, the 920G can easily tackle challenging terrain, making it ideal for demanding applications.


AXLES

This 18 tonne dump truck is equipped with robust axles that are made to handle the most demanding terrains. The front axle has electro-hydraulic suspension and individual levelling for optimal positioning. The rear axle is a heavy-duty bogie axle with reduction gears in the hubs for a simple and maintenance-free design. Together, they deliver a reliable and strong axle solution for the 920G that can handle even the roughest terrain with ease.


ENGINE

Powering the 920G is the impressive Cummins B 6,7 liters 6-cylinder Stage 5 engine. This advanced engine is equipped with DOC, DPF and SCR catalytic converter with AdBlue addition to meet the strictest emission standards. With 24 valves, common-rail turbo diesel technology, intercooler and an electronic variable turbocharger, this engine delivers impressive performance. It produces a maximum power output of 231 kW (314 hp) at 2200 rpm and a maximum torque of 1288 Nm at 1500 rpm. This powerful engine drives the 920G with ease and efficiency in the most demanding situations.


FUEL

The Hydrema 920G is equipped with impressive fuel capacity and efficiency. With a diesel tank capacity of 300 litres and an AdBlue tank capacity of 31 litres, this machine is ready to tackle even the longest workdays. Both tanks are intelligently integrated into the front chassis, making refuelling and fuel management easy and convenient.


BRAKES / RETARDER

The Hydrema 920G delivers impressive braking and retarding capabilities, ensuring safety and control in all conditions. With a full 2-circuit braking system and oil bath disc brakes on all 6 wheels, reliable stopping power and performance is achieved. For added safety, there's a Fail Safe handbrake on the front axle. These brakes are not only highly effective, but also maintenance-free, saving time and costs. To improve vehicle performance and speed control, there is also a manually operated retarder that combines the engine brake and a hydraulic retarder. This advanced system provides a maximum retarder output of 300 kW or 405 hp, contributing to safe and precise braking of the Hydrema 920G in a variety of conditions.


HYDRAULIC SYSTEM

The Hydrema 920G has an advanced hydraulic system with 5 pumps for precise control of brakes, stabiliser, differential lock, suspension, articulation, tipping, retarder and emergency steering. This ensures maximum performance and accuracy in every situation.
Pump 1: 31 l/min constant pump for brake, stabiliser, differential lock and suspension.
Pump 2: 189 l/min variable pump: for articulated steering.
Pump 3: 195 l/min constant pump for tipping and retarder.
Pump 4: 195 l/min constant pump for extra retarder performance.
Pump 5: 64 l/min constant pump for emergency steering (wheel drive).


TRANSMISSION

The 920G is equipped with a ZF ERGOPOWER 6 WG-210 automatic transmission that offers 6 forward and 3 reverse gears. It has a 100% lock-up function in all gears and the option to manually activate the differential lock between the front and rear axles. This gives the driver full control of the vehicle and ensures optimal performance in different situations. With an impressive maximum speed of 50 km/h in forward and 31 km/h in reverse and a maximum traction of 223 KN, the Hydrema 920G is ready to tackle any challenge with ease.


STEERING

This dump truck is equipped with a servo-activated hydrostatic steering system that ensures exceptional precision and manoeuvrability. With a separate variable pump dedicated to the steering function, the operator can achieve a maximum steering angle of +/- 38°, making it easy to manoeuvre in even the most demanding terrain. The steering in the Hydrema 920G is designed to deliver a smooth and responsive driving experience, making work more efficient and comfortable.


ELECTRICAL SYSTEM

At the heart of the Hydrema 920G you'll find a robust electrical system built for uninterrupted work. This reliable system is based on a standard 24V electrical system and is supported by a powerful 70 Amp. generator along with two 12V, 100Ah batteries.


DUMP TRUCK BODY

The 920G dumper body is constructed with durable Hardox 450 high-strength steel, without side ribs, and provides maximum protection with double-acting tipping cylinders. Options such as exhaust heating and an automatic tailgate enhance convenience. Short tipping times of 7.5 seconds up and 5.5 seconds down at maximum engine speed and an impressive 70° tipping angle make loading and unloading fast and efficient.


MULTICHASSIS

Not only standard options are available with a dump body. We also offer two exciting MultiChassis variants with short or long wheelbase. These MultiChassis solutions are like a blank canvas waiting to be filled with customised solutions. Whether you need a water tank, a lime spreader, forestry equipment or a hooklift for container handling, you can customise your 920G exactly to your needs. Maybe you want a flatbed for transporting tools, wood or heavy machinery? The choice is yours and the possibilities are endless!


OPERATORS CAB

Step into the spacious ROPS/FOPS cab of the Hydrema 920G, where comfort and control go hand in hand. With heavy-duty viscose suspension, you'll experience minimal vibration while enjoying great views. The seat with air suspension, ventilation and longitudinal damping provides all-day comfort. You're in full control with an adjustable steering wheel and a multi joystick that controls hydraulics and transmission. And with automatic tipping and lowering of the body, we make it easy for you to get the job done.


SOUND LEVEL

In the cab of the 920G, you can work in peace and quiet with a noise level of only 73 dB(A). While you enjoy the inner silence, the machine works efficiently outside with a sound level of 106 dB(A). We unite comfort and productivity so you can do your job with the perfect balance of performance and well-being.


SAFETY

We take safety seriously, and that's reflected in every detail of the Hydrema 920G. With features like hoist assistance, which warns of unsafe tipping, and a rear view camera for improved visibility, we fulfil ISO 5006 requirements and give you the confidence to work safely and efficiently. Our brake indicator keeps an eye on the brakes and warns if there's a risk of overheating, so you can focus on your work without worry.

Dimensions

Chassis STD MultiChass. SHORT WB MultiChass.  LONG WB
Std. tyres 920/45xR25
Total weight 34500 33950 34150
Unladen weight 16500 13950 14150
Load capacity 18000 20000 20000
Total width 3334 3334 3334
Clearance 440 440 440
Dump truck body width 2750  -   -
Total height 3440 3440 3440
Transport height 3400 3400 3400
Loading height 2640  -   -
Height with raised body 6300  -   -
Tipping clearance 820  -   -
Overhang, rear 1415 1244 762
Wheel base, bogie 1636 1636 1636
Length 9170 8995 10175
Approach angle, front 25 25 25
Approach angle, rear 68  -   -
Tipping angle 70  -   -
Wheel base 3720 3720 5370
Overhang, front 2400 2400 2400
Body capacity, levelled 9.2  -   -
Body capacity, heaped 12  -   -
Tipping time, raise 7.5  -   -
Tipping time, lower 5.5  -   -
Turning radius, outer 8.57 8.57 11.27
Ground pressure (loaded) 85 85 85

HYDREMA 920G: POWERFUL AND EFFICIENT IN SOFT TERRAIN

The Hydrema 920G is designed to perform earthmoving in the most challenging and sensitive terrains. With its 920 mm wide tyres and ground pressure of only 85 kPa fully loaded, this dump truck delivers exceptional traction and stability. The strong steel construction and wide steel-reinforced tyres provide the puncture resistance and grip required in soft terrain.

This machine is not only powerful, it's also intelligent. With advanced features like Hoist Assistance, brake indicator and a reversing camera, safety is top notch. The spacious cab is comfortable and ergonomically designed, giving the operator a pleasant working experience.

Whether you work in agriculture, forestry or construction, the Hydrema 920G is ready to handle the most challenging tasks. This dumper truck truck is the perfect choice if you're looking for a reliable and powerful partner in your earthmoving endeavours.

The golf course architect recommended the Hydrema 922 for the job. We pick up sand and soil about 2 kilometres from the course entrance and can drive in and unload without damaging paths and fragile fairways.

DISCOVER FLEXIBILITY AND POSSIBILITIES WITH THE 922G SERIES FROM HYDREMA

With the Hydrema 922 G-series, a world of possibilities opens up and customisation is key. These versatile 18 and 20 tonne dump trucks can be registered for driving on public roads and come in three different versions, each with speeds of 30, 40 or 50 km/h.

When you choose the 922 series, you have the option to customise it to your exact needs. Choose between the 922HM with 800 mm wide tyres for exceptional off-road performance, or this 920G version with 920 mm wide tyres for the lowest ground pressure possible. If space is tight, fear not. Our narrow version, the 922G 2.55, has a truck width of less than 2.55 metres, making it ideal for tight working areas. Whatever your needs, Hydrema is ready to deliver the perfect solution for you.

But it doesn't stop there. With our MultiChassis versions, we open the door to a world of customised solutions. Whether you need a water tank, a lime spreader, forestry equipment or a hooklift for container handling, we've got you covered. There's even the option of a flatbed for transporting tools, timber or heavy machinery.

MultiChassis

Hydrema's 18 tonne dump truck, the 920G, goes beyond the usual standard version with the dump body. Here we offer 2 different MultiChassis variants: MultiChassis SWB (Short Wheel Base) and MultiChassis LWB (Long Wheel Base). These innovative MultiChassis solutions give you the freedom to customise your 920G to the exact task at hand.

With MultiChassis, you get a versatile platform for mounting a wide range of specialised solutions. Need to water roads or work areas? Then a water tank is an option. Need to spread lime or fertiliser on fields? The right customisation makes this possible too. For forestry or container handling, you can integrate a hooklift to simplify the handling of materials.

With the two different sizes of MultiChassis for the 920G from Hydrema, you can customise and adapt your dumper exactly to your needs.

922G Swbandlwb Website

Hydrema Telematics

MONITORING AND OPTIMISING YOUR HYDREMA DUMP TRUCK

Hydrema Telematics is the ultimate solution for monitoring, controlling and optimising your Hydrema 920G. Whether you use the machine for earthmoving, construction projects, mining or other heavy machinery, Hydrema Telematics allows you to optimise your machine's performance, reduce operating costs and improve safety.

Hydrema Telematics is an advanced tracking and data collection system that gathers information from your machine via sensors and electronics. This gives you a comprehensive overview of your machine's performance and condition. You can easily access collected data from the engine, transmission and other key components via the online portal. This enables you to keep an eye on the machine's operating hours and location in real-time.

With the GeoLeash feature, you can create dynamic location tracking of your machines, even when they move from one location to another. This ensures your valuable assets are protected from theft and unauthorised use.

Through the collected data and analytics, you can optimise your machine's performance. You can reduce fuel consumption, increase machine uptime and learn how to best utilise your machine. Hydrema Telematics also allows you to compare the driving patterns and fuel consumption of different machines and operators, making it easy to make adjustments that can benefit your business and help your operators learn from each other.

Hydrema Telematics also helps you schedule maintenance tasks and diagnose problems. By displaying warning codes and other vital data on the online portal, Hydrema's service team can identify faults remotely, quickly and accurately. This reduces downtime and maximises machine uptime.

Our telematics system also helps you increase productivity. You can easily manage your fleet, schedule maintenance tasks, reduce idle time, fuel consumption and downtime while saving money and improving your machine's overall residual value. The system keeps track of how many loads you transport each week and how many hours of effective productivity your machines deliver per day, week and month.

Hydrema Telematics can provide data via API to external platforms, making it ideal for fleet management with mixed equipment such as Trackunit. Additionally, machine software updates can be updated remotely.

For new machines, a free 3-year subscription period to Hydrema Telematics is included. With the free subscription, you get full access to all features, services and software updates. This ensures you get the most out of your Hydrema 920G and keep it in top shape.

With Hydrema Telematics, you can take control of your 920G's performance and safety, optimise operating costs and improve your business productivity. It's the ultimate solution to help you get the most out of your investment in a Hydrema 920G.

HYDREMA 920G: ULTIMATE SAFETY AND MINIMAL MAINTENANCE

RETARDER SYSTEM

ADVANCED SYSTEM FOR MAXIMUM SAFETY AND PERFORMANCE

With the renewed and powerful retarder system, the 920G dumper sets new standards in machine safety and performance. This advanced system consists of as many as 5 hydraulic pumps working in harmony to ensure that all functions of the 920G operate independently and with minimal energy loss.

The retarder system combines both a powerful engine brake and a hydraulic retarder. Operation is simple thanks to the intuitive retarder joystick in the right armrest. When travelling downhill, this system will significantly reduce the load on the service brake and increase both the safety and lifespan of your brakes.

But it doesn't stop there. The Hydrema 920G also introduces a new brake indicator system that further increases safety. If the brakes are in danger of overheating, the driver will immediately receive a warning on the instrument display, accompanied by a reliable audible alarm. With this system, you can rest assured that your 920G will always provide maximum safety and performance in even the most challenging situations.

Service

SIMPLE AND EFFECTIVE MAINTENANCE

Keeping your Hydrema 920G in top shape is a breeze thanks to our smart maintenance solutions. We've made it easy for you to access the engine and filters using our simple push-button mechanism that opens the engine hood directly from the cab.

The large hood gives you full and safe access to all service points, making daily checks quick and hassle-free. By performing regular and proper maintenance, you'll ensure your machine has a long lifespan and avoid unnecessary breakdowns.

For the ultimate in lubrication and maintenance, you can also opt for our smart automatic central lubrication system, which adapts the amount of grease individually to different lubrication points and optimises lubrication intervals, so your dumper is always in top shape.

A DEEPER INSIGHT INTO THE HYDREMA 920G

Cab

THE CAB

COMFORTABLE AND SAFE: THE CAB OF THE HYDREMA 920G

In the operators cab of the Hydrema 920G, you'll experience a perfect balance between comfort and safety. The spacious cab is designed with the driver in mind, offering exceptional visibility and ergonomics. The seat is equipped with air suspension, ventilation and longitudinal damping, ensuring a comfortable driving experience even during long working days. It is fully adjustable so you can find the optimal position.

All key functions are easily operated via an intuitive layout. The multi-joystick that controls hydraulics and transmission is integrated into the right armrest, and you can choose between automatic or manual gear shifting.

Safety is at the centre of this machine. It is ROPS/FOPS certified to protect the operator in the event of an unexpected incident. The viscose suspension reduces vibrations, further improving comfort and safety. The Hydrema 920G not only delivers impressive off-road performance, but it does so with operator comfort and safety in mind. The cab is the perfect place to work efficiently and safely in any work situation.

Safety

SAFETY

THE 920G DUMPER PROTECTS YOU ON THE JOBSITE

The Hydrema 920G is not only a powerful earthmoving machine, it also puts your safety first. With careful design and advanced safety features, this hauler is made to protect you in any work situation.

The cab of the Hydrema 920G is a safety zone in itself. Its ROPS/FOPS certified, meaning it's designed to withstand high impact and protect the operator from harmful elements. To improve visibility and safety, the Hydrema 920G has a rear-view camera that gives you better visibility, especially when working in tight spaces or on slopes. The machine also fulfils the ISO 5006 standard for visibility, which sets out the requirements for the operator's field of vision and ensures you have optimal visibility during operation.

When it comes to brakes and retarder, the 920G has it covered. A brake indicator provides a warning if the brakes are at risk of overheating, helping to prevent dangerous situations. The manually operated retarder is a combination of engine brake and hydraulic retarder that gives you extra control on descents and helps reduce brake wear.

Tipping

TIPPING CYCLE

TIME-SAVING AND PRECISE TIPPING

Whilst the work can be demanding, the Hydrema 920G makes the tipping cycle an easy task. This impressive dump truck delivers an efficient tipping cycle that saves time and increases productivity. With a fast lift time of just 7.5 seconds and an even faster lowering speed of just 5.5 seconds, you'll get optimal performance in the field.

The Hydrema 920G's tipping cycle is a seamless process that lets you unload with ease and precision. With an impressive 70-degree tipping angle, the Hydrema 920G can handle the load with ease and precision. This puts you in control of your operations and ensures that nothing is wasted during tipping. A reliable tipping cycle is key to efficiency and productivity on the jobsite, and the Hydrema 920G delivers just that.

Whether you work on construction sites, in agriculture or other industries, you'll appreciate the impressive tipping cycle that the Hydrema 920G offers. This dump truck is built to handle your challenging tasks with ease and precision, so you can focus on getting the job done.
