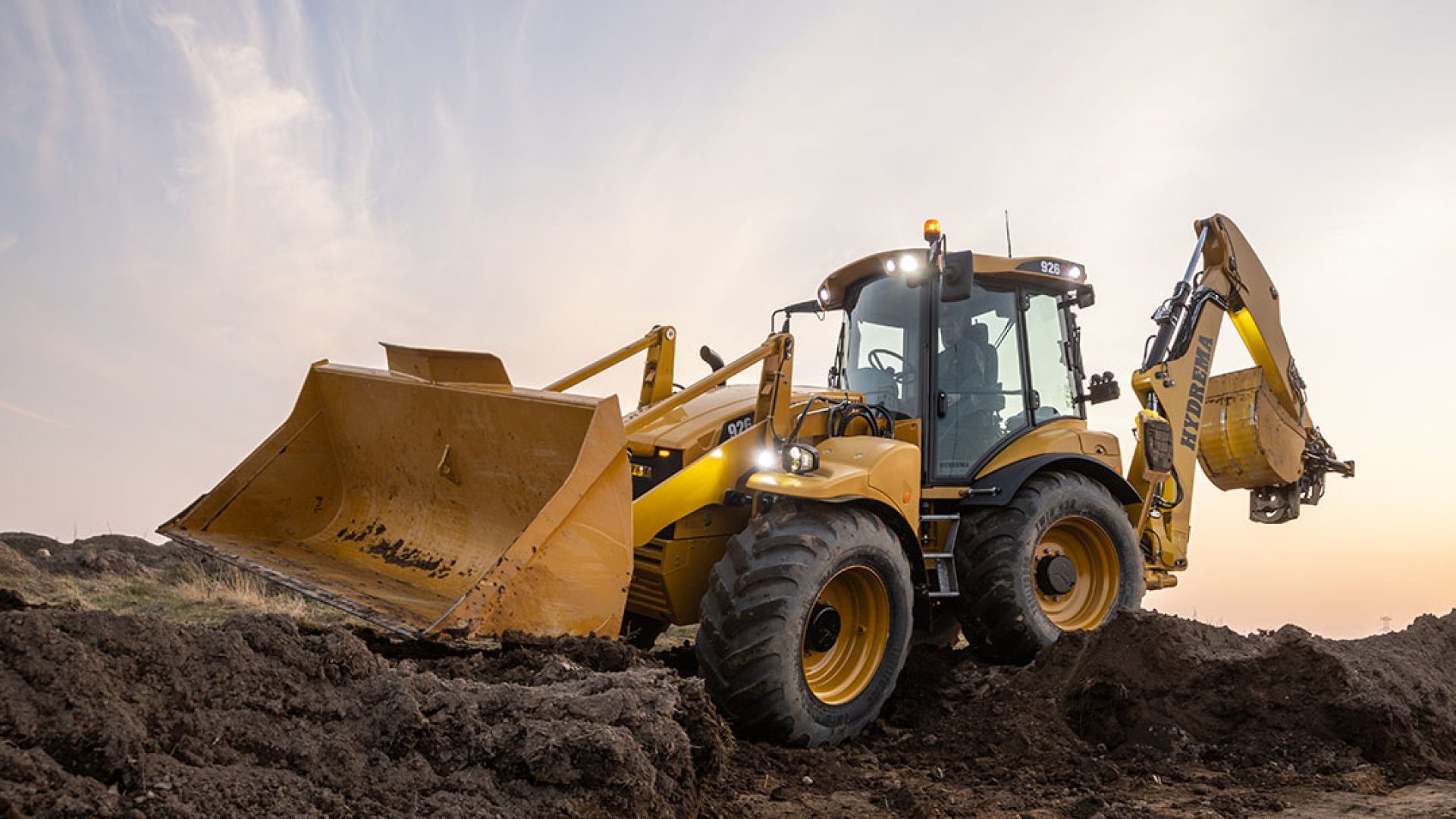

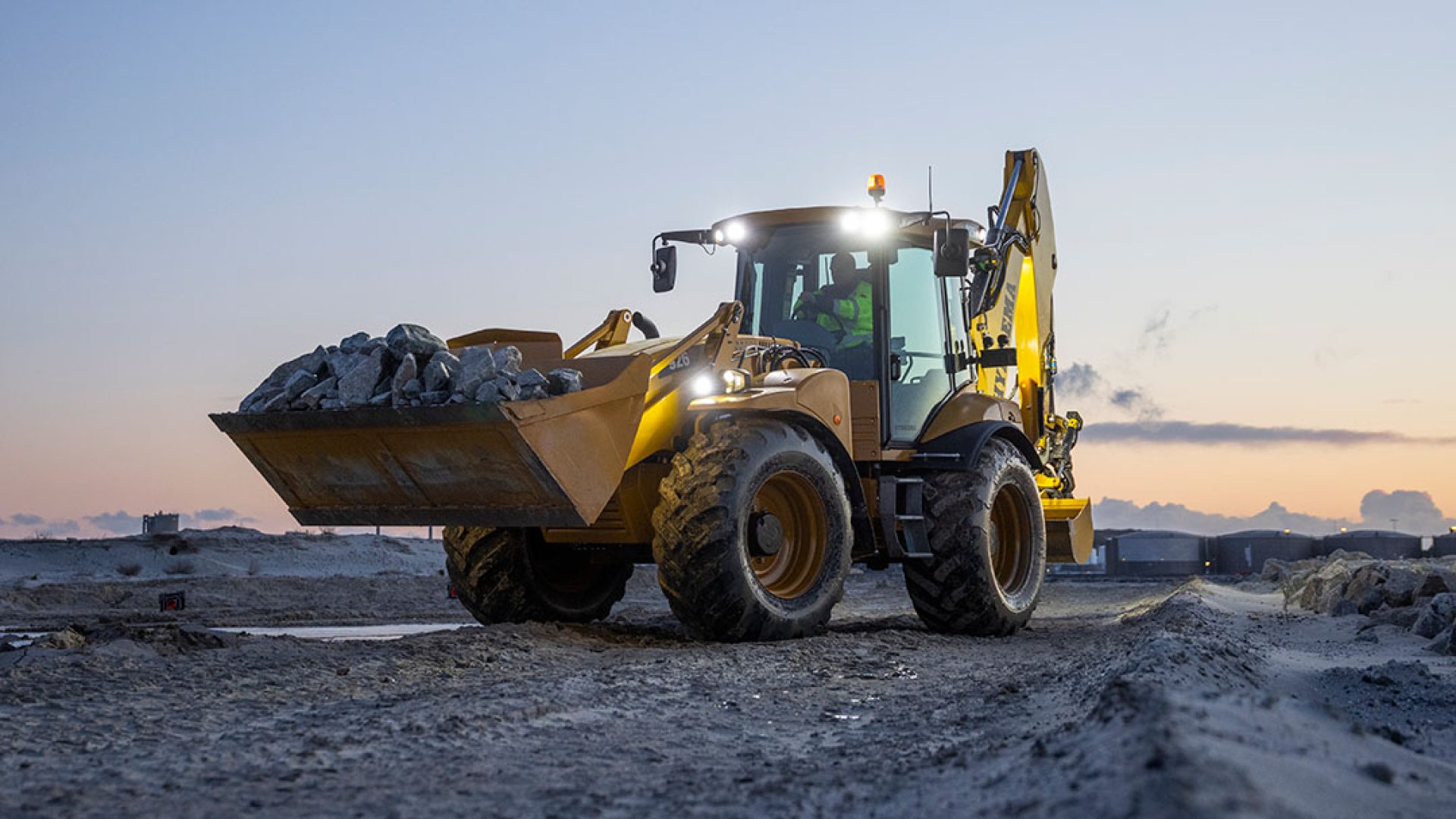

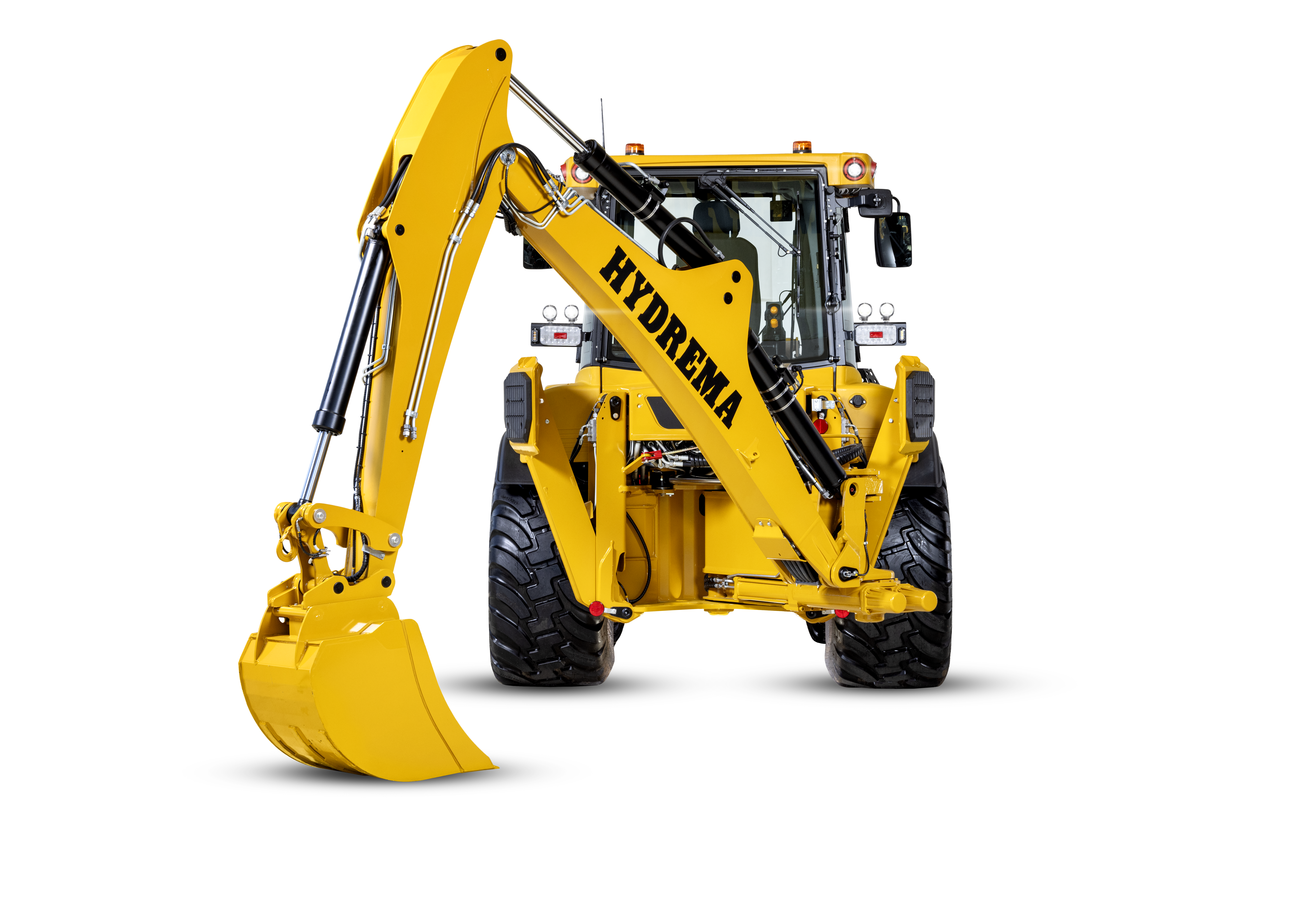

The Hydrema 926G is a top-tier articulated backhoe loader that blends strength, flexibility and operator comfort. Equipped with a 147 hp Cummins B‑4.5 Stage V engine and advanced hydraulics, it handles both digging and loading tasks with ease. Its knuckle-steered chassis and robust design make it ideal for tough terrain and varied job sites. With features like side-shifted excavator capability and a 280° working range, the 926G delivers exceptional reach and adaptability.
DOUBLE COMMAND SYSTEM
The Hydrema 926G takes machine operation to a new level with its Double Command System. This system gives operators unrivalled flexibility and control by allowing control of the machine’s wheels and all hydraulic functions from two joysticks in the armrests. With the ability to operate the machine even when the operator’s seat is facing the opposite direction of travel, the Double Command System offers unique manoeuvrability and efficiency. This functionality is particularly useful in complex or confined work areas where precision and versatility are key to a successful operation.
THE CAB
ROTORTILT
The addition of a tiltrotator to the Hydrema 926G takes its already impressive capabilities to a new level of versatility and accuracy. With a tiltrotator, the 926G’s excavator arm becomes highly manoeuvrable, able to rotate 360 degrees and tilt, allowing the operator to perform precise tasks from almost any angle. This is a crucial improvement for working in confined or complex areas where conventional digging movements are not sufficient. With this addition, the 926G becomes even more efficient in tasks such as precision excavation, pipe and cable work and landscaping.
SAFETY
This backhoe loader is equipped with a range of safety features that ensure the protection of both the operator and the jobsite. With a ROPS/FOPS approved cab, robust construction and an advanced braking system with electro-hydraulic “Failsafe” parking brake, the 926G offers maximum safety in all operating conditions. In addition, the machine’s advanced hydraulic system and precision controls are designed to minimise the risk of errors and unforeseen situations.
PERFORMANCE
The Hydrema 926G’s hydraulic system is a key factor in its superior performance and efficiency. Equipped with an advanced Load Sensing system and a variable pump that can deliver up to 220 l/min at 2200 rpm and 240 bar pressure, the 926G ensures precise control and powerful performance. This sophisticated hydraulic system is key to the 926G’s versatility and enables it to handle a wide range of applications, from precision digging to heavy-duty lifting.
Step in and explore every angle of the 926G’s operator cabin. With full 360° visibility, ergonomic control layout, and a well-insulated ROPS/FOPS environment, this cab is designed for long, demanding workdays where precision and comfort matter most.
The Hydrema 926G's chassis is engineered for strength and manoeuvrability. With an articulated, robotically welded design and advanced pendulum rod system, this chassis delivers exceptional traction and track alignment. Whatever the terrain - soft, steep or snowy - the 926G stands strong, ready to tackle any challenge with its robust and reliable foundation.
The 926G is equipped with rigid, fixed axles, reinforced with hub reduction for durability and power. This backhoe loader has an automatic limited slip differential lock on the front axle and a 100% electro-hydraulic differential lock on the rear axle. These features contribute to outstanding stability and control, regardless of the surface, and ensure the 926G delivers consistently high performance even in the most demanding working conditions.
The engine in the Hydrema 926G is a powerful Cummins B-4.5 Stage 5 engine, producing 147 hp with an impressive 600 Nm of torque at 1500 rpm. This advanced engine, equipped with modern technologies such as Common-Rail Turbodiesel and electronic variable turbocharger, ensures high performance with low fuel consumption. The 926G's engine is designed to handle demanding tasks with ease, making it a reliable power source on any construction site.
With the Hydrema 926G's fuel system, long-lasting and efficient operation is ensured. The machine has a spacious 155 litre diesel tank located in the rear chassis and a 14 litre AdBlue tank in the front, enabling long working periods without the need for frequent refuelling. This intelligent placement of the fuel tanks not only contributes to improved weight distribution, but also to higher overall efficiency and productivity in the workplace.
This backhoe loader is equipped with a highly efficient hydraulic servo system and a dual-circuit braking arrangement that ensures reliable and controlled braking in all conditions. The machine also has oil-immersed disc brakes on all wheels for additional safety and stability. An important safety feature is the electro-hydraulic "Failsafe" parking brake, which automatically activates the wet disc brakes on the front axles. This advanced braking system in the 926G guarantees maximum operator safety and efficient handling on the jobsite.
The hydraulic system in the 926G has been carefully designed to optimise both power and control. With its electronically controlled Double Command and Flow Sharing technology, precise and efficient operation is ensured. The system, equipped with a high-performance pump that delivers up to 220 l/min at 2200 rpm and 240 bar pressure, allows the machine to perform even the most demanding tasks with great precision. This superior hydraulic capacity makes the 926G ideal for a multitude of applications where precise manoeuvring is essential.
The innovative transmission in the Hydrema 926G sets a new standard for agility and power in backhoe loaders. Its ZF WG115, 6-speed fully automatic "ERGO-POWER Soft-Shift" transmission is designed to deliver an effortless driving experience with its advanced, 100% electronic control. This technology ensures smooth gear changes without sacrificing traction, which is essential for precision work in demanding environments. With constant 4-wheel drive and a versatile range of gears, this transmission perfectly balances power and manoeuvrability, making the 926G an indispensable partner on any construction site.
With its advanced steering system, the Hydrema 926G sets a new standard for precision and control. Its articulated design with an articulating pivot point and hydraulic stabilisers ensures that weight is automatically transferred between the wheels for optimal weight distribution and stability. This is complemented by an efficient hydrostatic steering system that utilises Load Sensing and dual-acting cylinders with end brakes to provide an accurate and lightweight response. With an impressive articulated steering angle of +/- 35°, the 926G offers excellent manoeuvrability, which is essential for navigating complex work areas.
