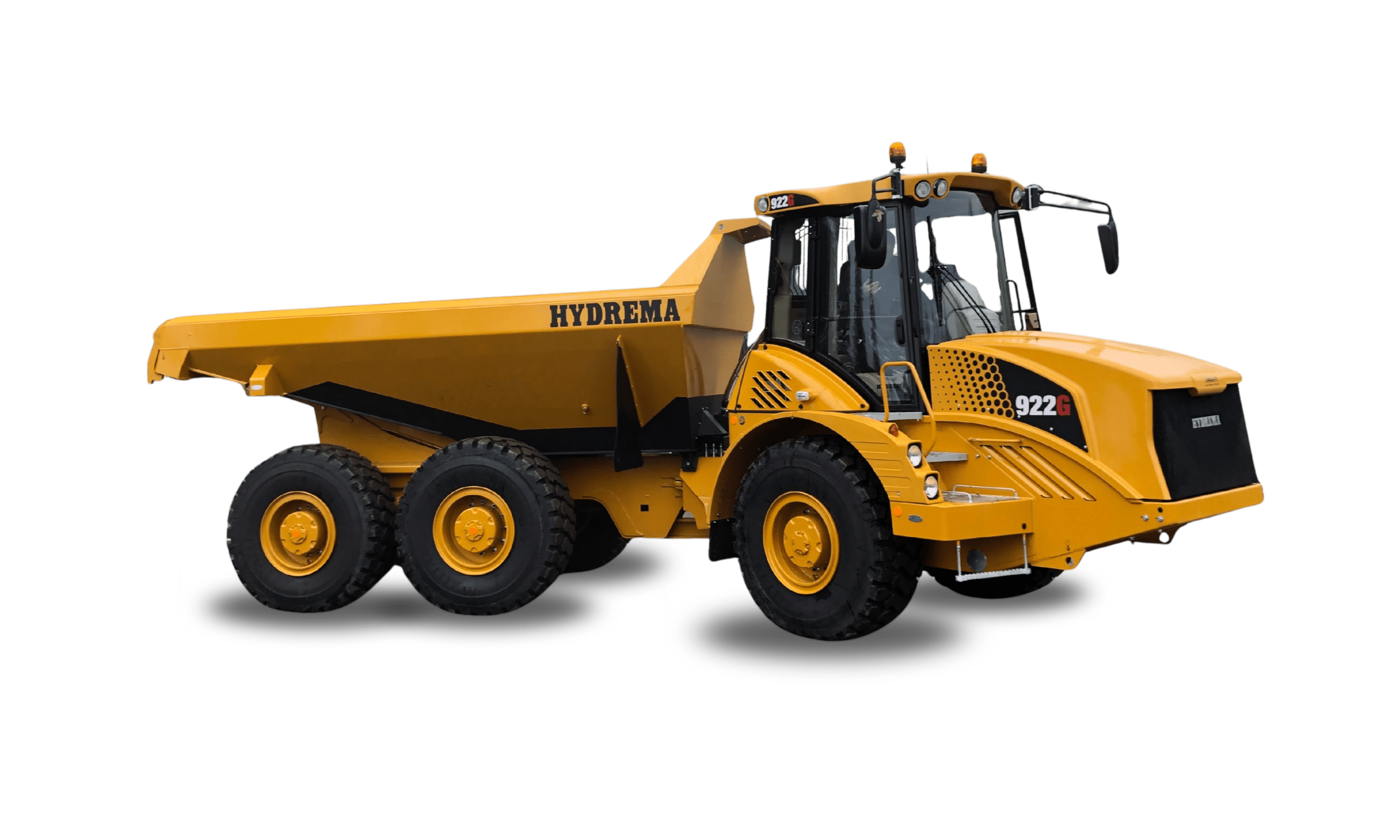

Hydrema 922G 2.55 - Narrow & Reliable Dump Truck under 2.55m

CHASSIS

In the 922G 2.55 you'll find an advanced chassis that's engineered with precision and durability to ensure ultimate stability in all conditions. This articulated chassis is equipped with a pendulum rod and dual hydraulic stabiliser in the articulation joint. The chassis is made from high-strength steel to maximise strength while minimising vehicle weight. This combination of robust construction and lightweight materials makes the 922G 2.55 a reliable and efficient work partner that can handle demanding tasks with ease. With a swing angle of +/- 12 degrees, the machine can navigate even the most challenging terrain with confidence and stability.

AXLES

The axles on the 922G 2.55 combine performance and durability. The front axle features electro-hydraulic suspension and individual levelling, ensuring optimal position and stability. A heavy-duty differential lock with 75% locking action improves traction. The rear axle is a heavy-duty bogie axle with reduction gears in the hubs, a robust and maintenance-free solution with a large swing angle. This gives the machine solid reliability to tackle demanding tasks.

ENGINE

At the heart of the Hydrema 922G 2.55 you'll find a powerful Cummins B 6.7 litre 6-cylinder engine that meets Stage V standards. It is equipped with DOC, DPF and SCR catalyst with AdBlue addition, ensuring environmentally friendly operation. This 24-valve common-rail turbodiesel delivers impressive performance with electronic variable turbocharger. With a maximum power output of 231 kW/314 HP at 2200 rpm and a torque of 1288 Nm at 1500 rpm, this engine is ready to tackle the most challenging tasks with ease.

FUEL

When it comes to fuel capacity, the 922G 2.55 has an impressive capacity to give you long-lasting operation. With a 300 litre diesel tank and a 31 litre AdBlue tank, both cleverly integrated into the front frame, this machine is ready to keep you going for long working days without interruption. That means less time spent refuelling and more time spent getting the job done.

BRAKES / RETARDER

Safety and performance go hand in hand with the 922G 2.55's advanced braking and retarder system. This powerful machine is equipped with a full 2-circuit braking system with oil immersed disc brakes on all 6 wheels, ensuring reliable and maintenance-free braking performance. For added safety, there's a fail-safe handbrake on the front axle. But that's not all - the 922G 2.55 also features a manually operated retarder that combines the engine brake with a hydraulic retarder for maximum performance. This powerful retarder delivers up to 300 kW or 405 hp, meaning you can achieve excellent control and safety, especially when travelling down slopes or hills.

HYDRAULIC SYSTEM

The hydraulic system in the 922G 2.55 dump truck is responsible for the machine's impressive performance. This advanced system consists of no less than 5 hydraulic pumps that work together to ensure the machine operates smoothly and precisely in all conditions.
Pump 1: 31 l/min constant pump for brake, stabiliser, differential lock and suspension.
Pump 2: 189 l/min variable pump: for articulated steering.
Pump 3: 195 l/min constant pump for tipping and retarder.
Pump 4: 195 l/min constant pump for extra retarder performance.
Pump 5: 64 l/min constant pump for emergency steering (wheel drive).

TRANSMISSION

The 922G 2.55 transmission delivers efficiency and control. This ZF ERGOPOWER 6 WG-210 automatic transmission is equipped with 6 forward gears and 3 reverse gears, giving you the flexibility to handle any situation. The dump truck's 100% lock-up function in all gears ensures maximum power transfer and efficiency. You also have the option of both automatic and manual gear shifting, so you can customise the drive according to your preferences and needs. Speed is impressive with a maximum forward speed of 50 km/h and a reverse gear that gives you good control at 31 km/h. With an impressive maximum tractive effort of 223 kN, you can rest assured that the 922G 2.55 always has the power to handle even the most challenging terrains and tasks with ease.

STEERING

The steering in the Hydrema 922G 2.55 is a true pleasure to work with. With servo-activated hydrostatic steering, you get precise and smooth control of the machine. The separate variable pump, dedicated to steering, allows you to turn the wheels with ease and precision. Best of all, the impressive maximum steering angle of +/- 38°. This means you can manoeuvre the machine through even the tightest areas and handle sharp turns with effortless precision.

Chassis		STD	MultiChass. SHORT WB	MultiChass. LONG WB
Std. tyres		20.5-R25 EM
Total weight	Kg	36600	36200	36400
Unladen weight	Kg	16600	14200	14400
Load capacity	Kg	20000	22000	22000
Total width	mm	2550	2550	2550
Clearance	mm	480	480	480
Dump truck body width	mm	2550	–	–
Total height	mm	3490	3490	3490
Transport height	mm	3440	3440	3440
Loading height	mm	2690	–	–
Height with raised body	mm	6340	–	–
Tipping clearance	mm	820	–	–
Overhang, rear	mm	1415	1244	762
Wheel base, bogie	mm	1636	1636	1636
Length	mm	9170	8995	10175
Approach angle, front	°	26	26	26
Approach angle, rear	°	68	–	–

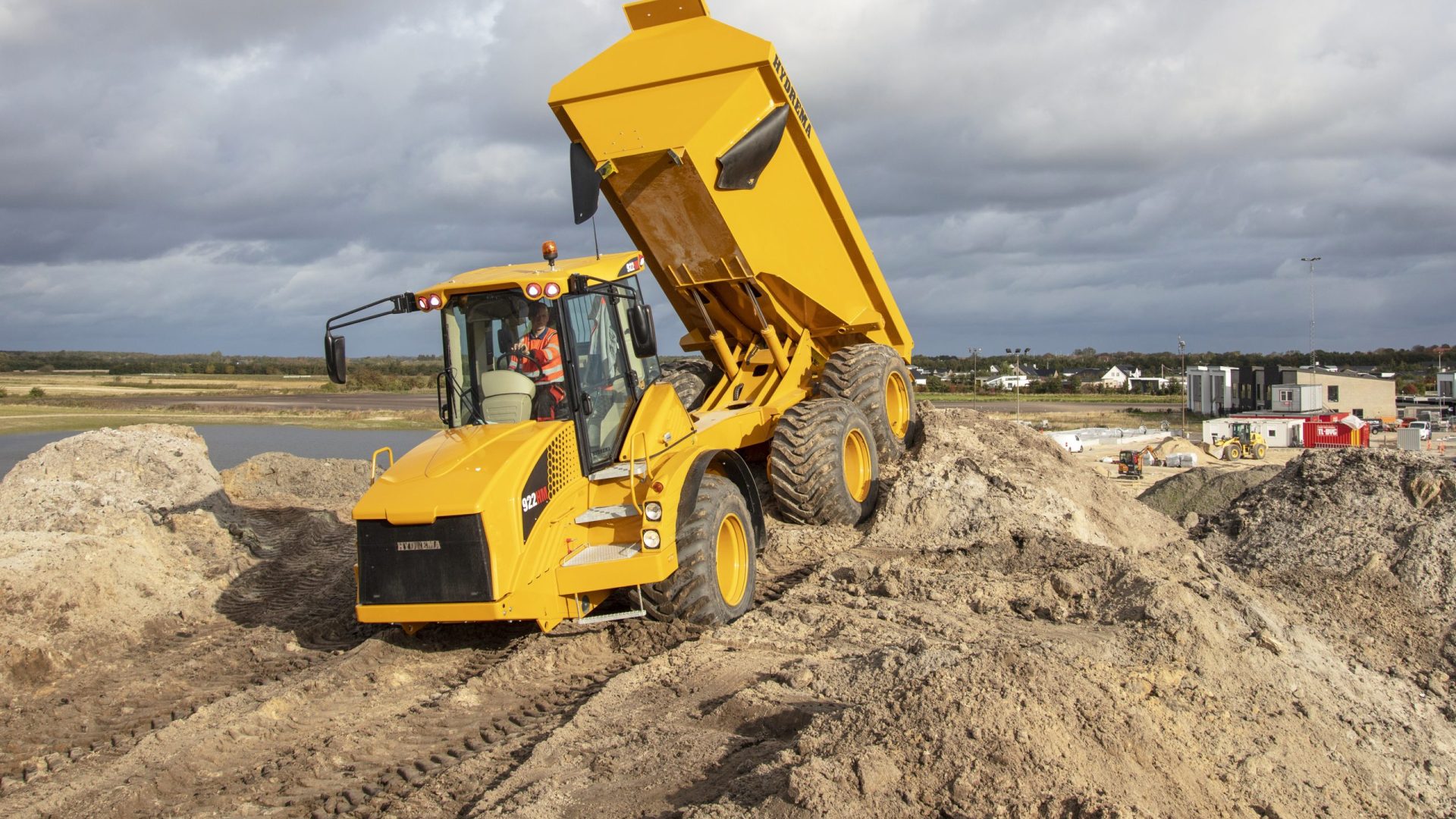

Tipping angle	°	70	–	–
Wheel base	mm	3720	3720	5370
Overhang, front	mm	2400	2400	2400
Body capacity, levelled	m³	9.2	–	–
Body capacity, heaped	m³	12	–	–
Tipping time, raise	Sec.	7.5	–	–
Tipping time, lower	Sec.	5.5	–	–
Turning radius, outer	m	8.18	8.18	10.88
Ground pressure (loaded)	kPa	146	146	146

Chassis		STD	MultiChass. SHORT WB	MultiChass. LONG WB
Std. tires		20.5-R25 EM
Total weight	lb	80689	79807	80248
Unladen weight	lb	36597	31306	31747
Load capacity	lb	44092	48502	48502
Total width	ft in	8′4″	8′4″	8′4″
Clearance	ft in	1′7″	1′7″	1′7″
Dump truck body width	ft in	8′4″	–	–
Total height	ft in	11′5″	11′5″	11′5″
Transport height	ft in	11′3″	11′3″	11′3″
Loading height	ft in	8′10″	–	–
Height with raised body	ft in	20′9″	–	–
Tipping clearance	ft in	2′8″	–	–
Overhang, rear	ft in	4′8″	4′0″	2′6″
Wheel base, bogie	ft in	5′4″	5′4″	5′4″
Length	ft in	30′1″	29′6″	33′5″
Approach angle, front	°	26	26	26
Approach angle, rear	°	68	–	–
Tipping angle	°	70	–	–
Wheel base	ft in	12′2″	12′2″	17′7″
Overhang, front	ft in	7′10″	7′10″	7′10″
Body capacity, levelled	yd3	12	–	–
Body capacity, heaped	yd3	15.7	–	–
Tipping time, raise	sec.	7.5	–	–
Tipping time, lower	sec.	5.5	–	–
Turning radius, outer	ft	26.84	26.84	35.7
Ground pressure (loaded)	psi	21	21	21

Hydrema 922G 2.55: Narrow Profile, Full Capacity

AGILE DUMP TRUCK IN TIGHT SPACES

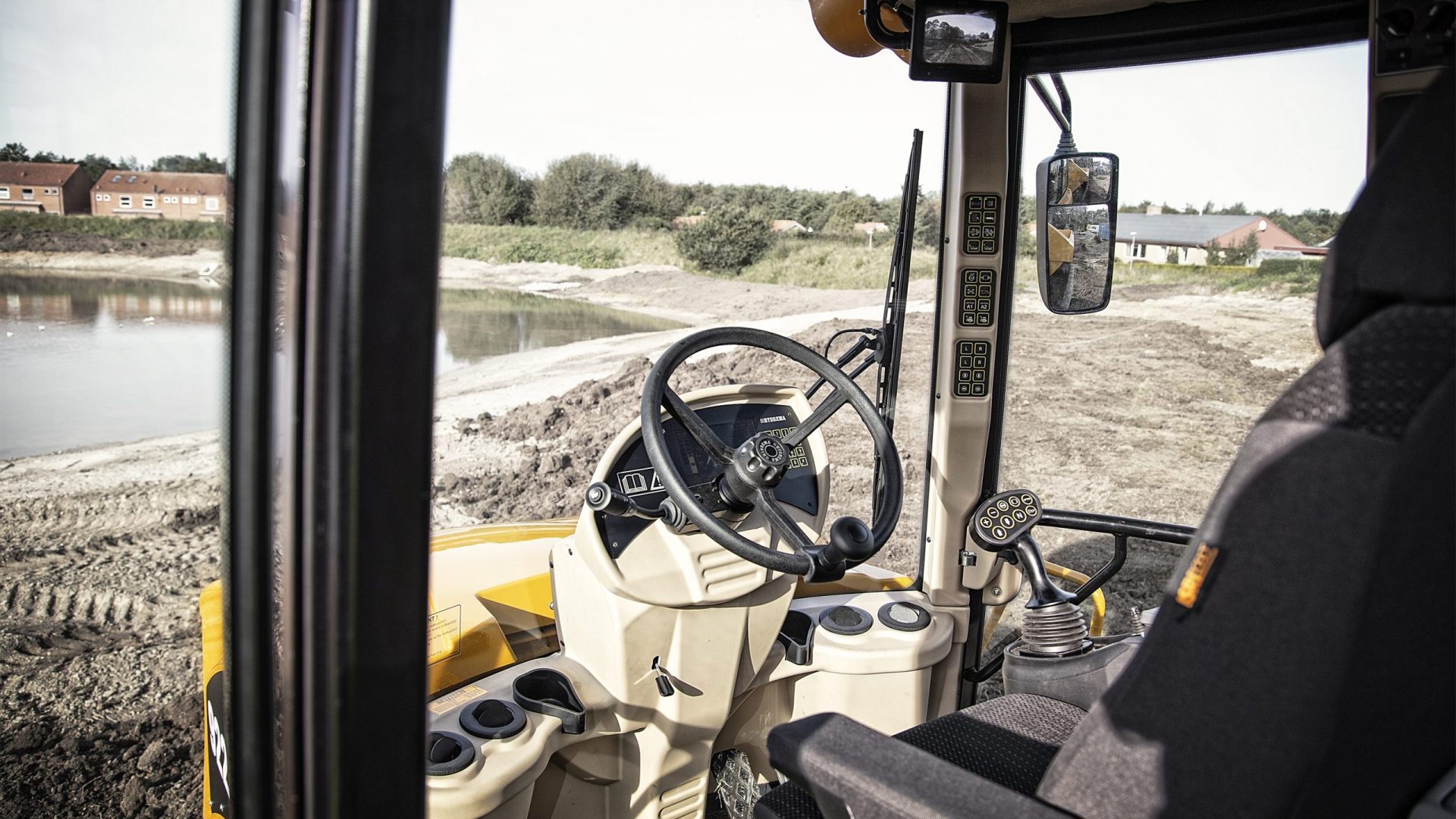

PREMIUM COMFORT

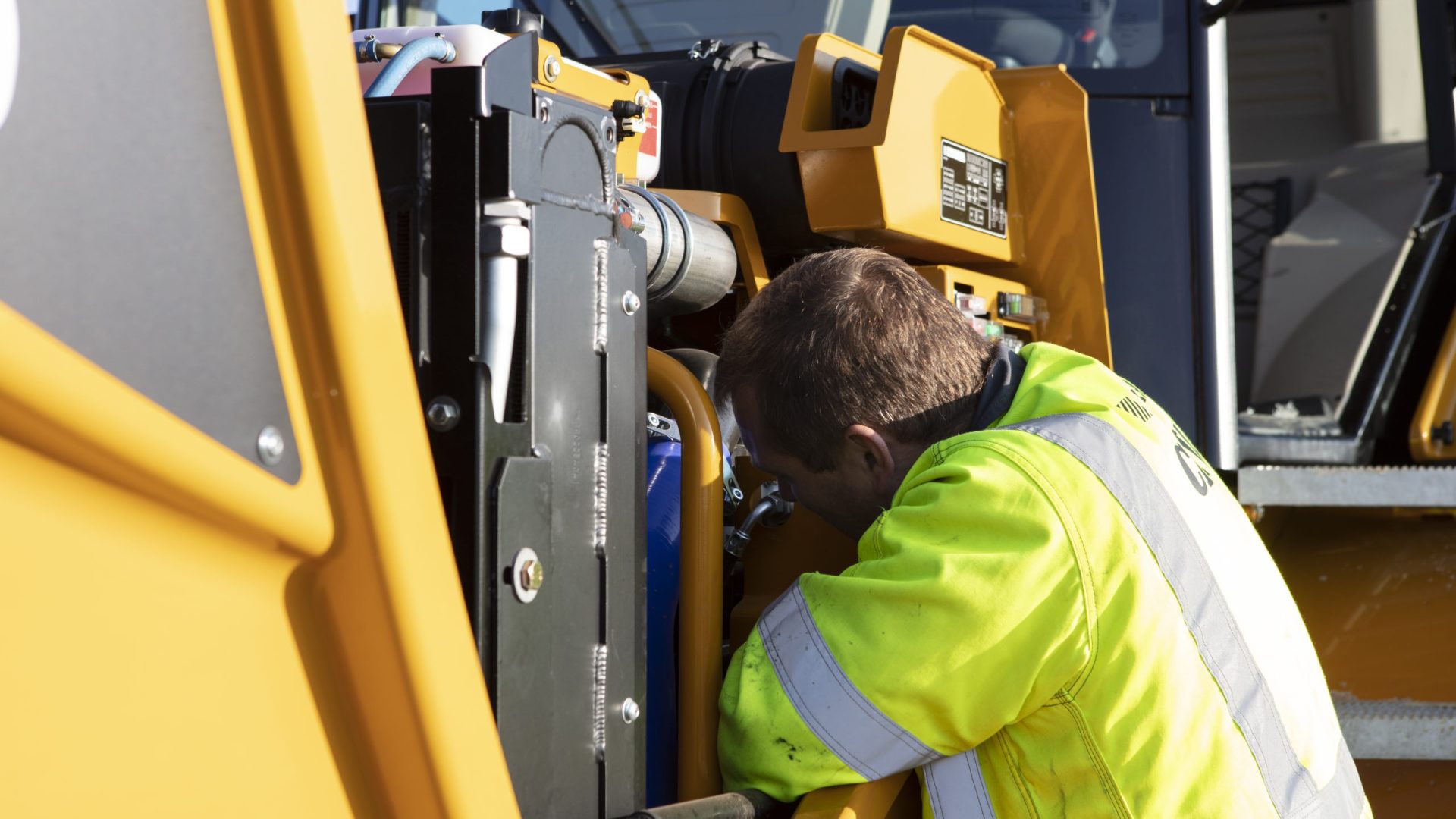

SAFETY IS PARAMOUNT

OPTIMISED PRODUCTIVITY WITH HYDREMA 922G 2.55

TOP-CLASS SAFETY AND BRAKING PERFORMANCE
