Dump Truck
Properties
Meet our compact articulated 7 tonne dump trucks; the 707G and 707G Power+! While more compact in design, they don't compromise on safety levels and match the larger dumpers. They are equipped with a forward-facing cab, oscillating articulated pivot point and a reliable hydrostatic transmission. The perfect combination of efficiency and safety in one streamlined package!
Sitting firmly in the 7-tonne class, Hydrema's 707G series of dump trucks combine compact design with exceptional functionality. Enjoy 360° visibility that makes them incomparably manoeuvrable. With enhanced safety features, they are not only efficient but also safe. With an extremely low ground pressure, they leave a minimal footprint on the terrain. And don't let their size fool you - they carry the same quality features as their larger articulated counterparts. Efficiency, safety and strength - all in one dump truck!
We offer two versions of this beauty - the standard model, the 707G, with 55 kW (74 HP), and the more powerful 707G Power+ with 90 kW (122 HP). The special thing about these dumper trucks is that they both come with a 3.8 litre Stage V Cummins engine that complies with the latest 2020 emissions regulations. While our 55 kW version doesn't require the addition of AdBlue, this 90 kW version does with an integrated 19-litre AdBlue tank.
But that's not all! The 707G Power+ comes with fully variable hydrostatic transmission, making it possible to reach speeds of up to 34 km/h without losing traction. And with three adjustable gear settings - Creep, Normal and ECO mode - you can customise your ride as needed. ECO mode is a particular winner when it comes to saving fuel, reminiscent of the familiar start/stop function from passenger cars.
Discover the power of our unique chassis! With a central articulated pivot point and advanced dual-acting hydraulic stabilisers, stability while driving and tipping is assured. Our design intelligently integrates the fuel tank and hydraulic tank in the front chassis, maximising efficiency and performance. Also experience incredible flexibility with a tilt angle of +/- 12°. With Hydrema, every detail is designed to perfection to create the highest quality dump trucks!
Experience the power of our advanced axle design! With a planetary reduction directly in the wheel hubs and dedicated oil chambers, optimal performance is ensured. The front axle comes with a automatic limited slip differential lock, while the rear axle has a fully hydromechanical locking function. Furthermore, our front axle is refined with an integrated reduction gear, specially designed for the hydraulic motor. This is technical innovation you can rely on!
The Hydrema 707G Power+'s hydrostatic transmission features an advanced 89cc variable piston pump and a 210cc piston engine, delivering performance exactly as you want with 100% variable speed. Explore our three drive modes:
With constant 4-wheel drive and cruise control in all three driving modes, you can always rely on a stable and efficient drive!
Meet the powerhouse of a dump truck; the 707G Power+! Powered by Cummins F 3.8L Stage 5, complete with DOC and SCR catalyst, DPF and the essential AdBlue additive. This 16-valve Common-Rail Turbodiesel boosts your performance with its intercooler and electronic variable turbocharger, delivering up to 122 hp (90 kW) and an impressive 500 Nm of torque.
And it doesn't stop there! The 707G Power+ is equipped with an intelligent stop/start system. After a set period of idling (which you can customise between 2-500 seconds), the engine pauses. But just step on the accelerator and it immediately springs back to life.
With our advanced hydrostatic Load Sensing articulated steering, equipped with two efficient dual-acting cylinders, you get optimal control with the Hydrema 707G Power+. A built-in priority valve ensures maximum efficiency and the emergency control is always at hand for your safety. The integrated damping steering cylinders ensure comfortable and precise steering, and with a maximum steering angle of +/- 38°, you can navigate even the most challenging terrain.
With our high-performance hydraulic pump delivering an impressive 59 L/min, we ensure maximum efficiency and precise control thanks to an integrated priority valve. But we don't compromise on safety - a separate pump takes dedicated care of the brakes and stabiliser, so you're always in control.
The Hydrema 707G Power+ offers a pleasant working experience with only 72 dB(A) noise level inside the cab. Outside the operator's cab, the noise level reaches 101 dB(A), ensuring minimal disturbance around you.
Experience the power of our robust 24V system, equipped with an efficient 70 Amp alternator. To ensure renewable energy and reliability, we utilise two powerful batteries, each with a capacity of 12V and 100 Ah.
Our advanced 3.5 m3 dump body, precisely engineered using robotic welding and made from high-strength steel, is a vital part of the 707G Power+. This body is designed for optimal performance with an impressive 69° tipping angle. Interestingly, the bottom of the body tilts 45° to the horizontal line, ensuring efficient and precise emptying. Make work more efficient with this advanced design feature!
The fuel efficiency of the Hydrema 707G Power+ is outstanding! With a 78 litre diesel tank and a 19 litre AdBlue tank, both integrated in the front chassis, you get the power and range you need to get the job done.

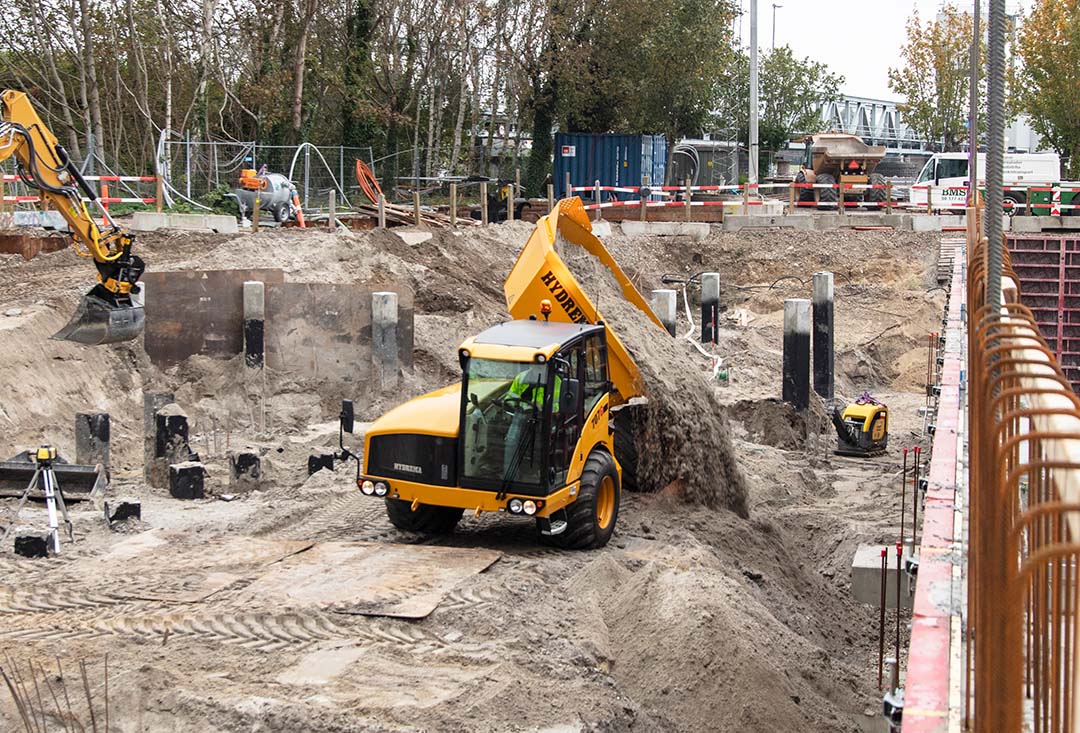

Experience precision and efficiency with our advanced MultiTip! Regardless of direction, you'll get fast unloading thanks to our robust swivelling system anchored on a large slewing ball bearing. The unique tipping function, which utilises two powerful double-acting cylinders, ensures consistent and precise positioning of the load, regardless of the angle of the machine. Plus, with a tipping time of only 6 seconds up and 5 seconds down, you can expect maximum performance every time!
With our dual-circuit hydraulic servo system, you get consistent and reliable braking power at all four wheels, all thanks to oil immersed brake discs. Not only are they self-adjusting, but they're also maintenance-free. To top it off, our handbrake is designed with a fail-safe parking brake that is electro-hydraulically activated, ensuring you can always rely on it. Safety and innovation goes hand in hand!
Take a seat in the cockpit of comfort! Our spacious cab, with ROPS/FOPS certification, is designed for optimal safety and superior views. Choose between a mechanical or air suspension seat for a driving experience like no other. With an adjustable steering wheel and a multifunction joystick at your fingertips, you're in complete control. And of course, A/C is standard - because you should never compromise on comfort.
| DT 707G POWER+ | DT 707G POWER+ / MultiChassis | DT 707G POWER+ / MultiChassis + Flatbed | ||||||
| Tires | 500/60-22,5 | 600/50-22,5 | 700/40-22,5 | 500/60-22,5 | 700/40-22,5 | 500/60-22,5 | 700/40-22,5 | |
| Engine power | hp (kW) | 122 (90) | 122 (90) | 122 (90) | 122 (90) | 122 (90) | 122 (90) | 122 (90) |
| SCR catal. with Ad-blue | x | x | x | x | x | x | x | |
| Total weight | kg | 11900 | 11950 | 12000 | 10650 | 10700 | ||
| Unladen weight | kg | 5400 | 5450 | 5500 | 4450 | 4500 | 5150 | 5200 |
| Load capacity | kg | 6500 | 6500 | 6500 | ||||
| Body capacity (heaped) | m3 | 3,5 | 3,5 | 3,5 | ||||
| Turning radius | m | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 |
| Ground pressure (loaded) | kPa | 116 | 97 | 83 | ||||
| Track | mm | 1800 | 1800 | 1850 | 1800 | 1800 | 1800 | 1800 |
| Total width | mm | 2360 | 2400 | 2550 | 2360 | 2550 | 2360 | 2550 |
| Ground Clearence | mm | 353 | 353 | 353 | 353 | 353 | 353 | 353 |
| Width, dumper body | mm | 2010 | 2010 | 2010 | 2270 | 2270 | ||
| Max height | mm | 2560 | 2560 | 2560 | 2560 | 2560 | 2560 | 2560 |
| Loading height | mm | 1873 | 1873 | 1873 | 1300 | 1300 | ||
| Height with raised body | mm | 3685 | 3685 | 3685 | 3330 | 3330 | ||
| Tipping clearance | mm | 1077 | 1077 | 1077 | 900 | 900 | ||
| Overhang, rear | mm | 1148 | 1148 | 1148 | 1050 | 1050 | ||
| Wheel base | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Overall length | mm | 5288 | 5288 | 5288 | 5010 | 5010 | 5180 | 5180 |
| Departure angle, front | ° | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| Departure angle, rear | ° | 69 | 69 | 69 | ||||
| Tipping angle | ° | 69 | 69 | 69 | 55 | 55 | ||
| Overhang, front | mm | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
Transform your Hydrema 707G Power+ to perfectly align with your company’s branding or to make a bold individual statement. Our custom color service allows you to personalize the appearance of your machine, offering a wide selection of hues to match any preference or corporate style.
Enjoy the exceptional quality of Hydrema combined with a unique brand identity, ensuring your machine stands out for both its performance and its looks.
Contact our sales department now to learn more about your customisation options!
