Articulated chassis with center pivot point, and two double acting hydraulic stabilizers. The stabilizers gives high stability when driving and tipping. The fuel and hydraulic tanks are integrated in the front frame.

Pivot oscillation +/- 12 °.

The axles have planetary hub reduction, and separate oil reservoirs in the hubs. The front axle has an automatic limited slip differential lock, and the rear axle has a hydromechanical differential lock. The front axle has integrated reduction gear for the hydraulic motor.

The Hydrema 707G's transmission is a key component that provides the flexibility and precision you need. With a hydrostatic transmission and the option of three driving modes:

• Creep - max speed 7.5 km/h. This allows for precise customisation at low speed.
• Normal - max speed of 34 km/h at 2200 rpm.
• ECO - max speed of 30 km/h at 1900 rpm.

Provides increased comfort when travelling on the road as the maximum speed is achieved at lower engine speeds. And whether you're working off-road or on-road, the constant 4-wheel drive and cruise control deliver a seamless experience.

The engine in the Hydrema 707G is an impressive piece of engineering. It boasts a Cummins F 3.8L Stage 5 engine with advanced technology, including DOC and DPF, delivering 75 hp (55 kW) at 1500 rpm and a maximum torque of 400 Nm at 1300 rpm. With its 16-valve common-rail turbodiesel, electronically variable turbocharger and EGR with cooling, it combines power and efficiency. And let's not forget the start/stop system that not only saves fuel, but also makes it easy to get going again with a single press of the accelerator.

The steering in the Hydrema 707G is a customised experience. With hydrostatic Load Sensing articulated steering, two double-acting cylinders and an impressive maximum steering angle of +/- 38°, you get precise and responsive steering. The priority valve and integrated emergency steering ensures, you're always in control, even in demanding situations. And with damping steering cylinders, your driving experience is both comfortable and efficient.

The Hydrema 707G's hydraulic system is the heart of its power and precision. With an impressive hydraulic pump that delivers 59 litres per minute and a priority valve for steering, you get optimal control over the machines movements. At the same time, the separate pump for brakes and stabilisers ensures that safety and precision are maintained in all conditions. It's a machine that combines power and finesse for outstanding performance.

Experience peace of mind in the operators cab! The Hydrema 707G offers a quiet working experience with only 72 dB(A) inside the operators cab. Outside the operators cab, the noise level reaches up to 101 dB(A). So whether you're inside the operators cab or near the machine, you can work in a comfortably quiet atmosphere.

With the Hydrema 707G you get reliable electrical performance! Our 7 tonne dump truck is equipped with a standard 24V system supported by a powerful 70 Amp alternator. The batteries consist of 2x 12V, 100 Ah, ensuring stable power supply for your needs, no matter the task. You can trust that the 707G is ready to tackle the most demanding jobs with its reliable electrical configuration.

The Hydrema 707G delivers impressive performance with its 3.5 m3 dump body with a 6.5 tonne load capacity, made from high-strength steel and robotically welded to perfection. With a 69° tipping angle, where the bottom of the body rises 45° from horizontal, you get optimal flexibility and efficiency for handling materials. The 707G's dump body is designed to handle the most challenging jobs with ease.

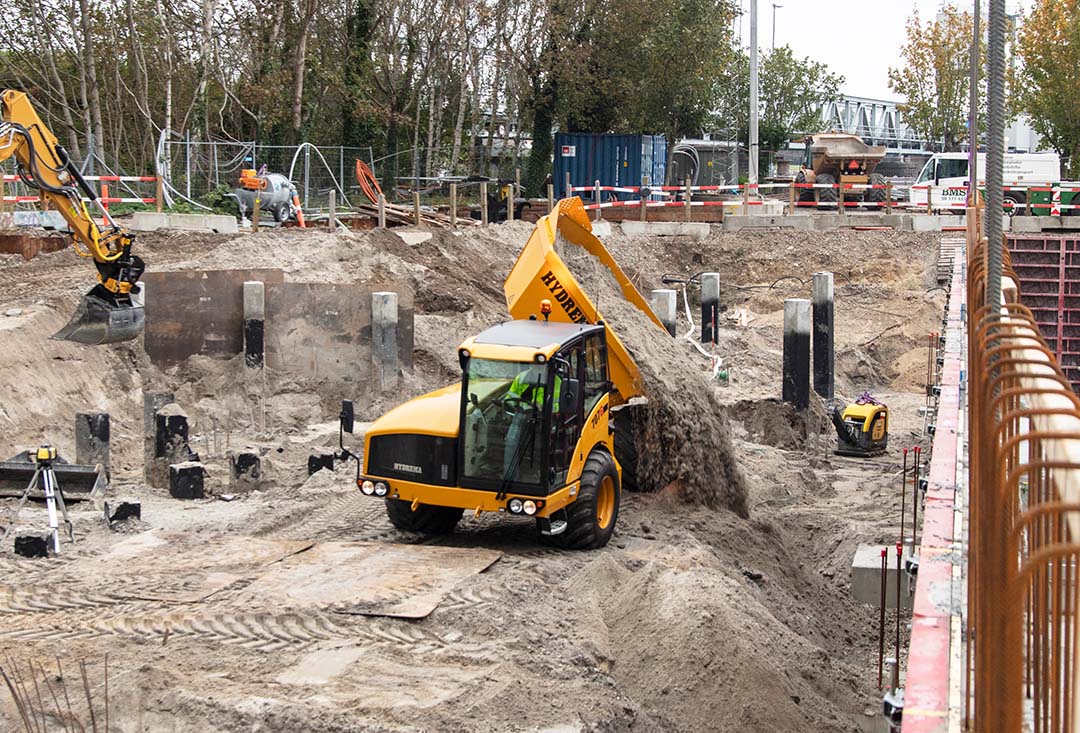

The 707G impresses with its innovative MultiTip system that gives you fast and reliable rear and side unloading. This robust swivelling system is mounted on a large slewing ball bearing and is smoothly controlled by two double-acting cylinders. Powerful double-acting cylinders ensure that the body is pulled down regardless of the machine's inclination, meaning you're always in complete control. And with an impressive tipping time of just 6 seconds up and 5 seconds down, you can maximise your productivity without waiting.

With an impressive 78-litre diesel capacity, the 707G is ready for long days of uninterrupted work. The fuel tank is cleverly integrated into the front chassis, giving you a more efficient and space-saving solution. So you can focus on your work without worrying about frequent refuelling stops.

Our brakes are a reliable force to be reckoned with! With a dual circuit hydraulic servo system and oil immersed brake discs on all 4 wheels, they're self-adjusting and maintenance-free. And when it comes to parking, we have a "Fail-safe" parking brake with electrohydraulic activation of the brake discs in the front axle - so your dump truck stays safe even when you're stationary.

Step into the comfort and safety of our spacious operators’ cab, which is ROPS/FOPS certified and gives you excellent visibility. You can choose between a mechanical or air suspended seat, and with an adjustable steering column and multi-joystick control, you'll have control at your fingertips. Plus, we'll make sure you’ll always stay cool with the standard A/C.
